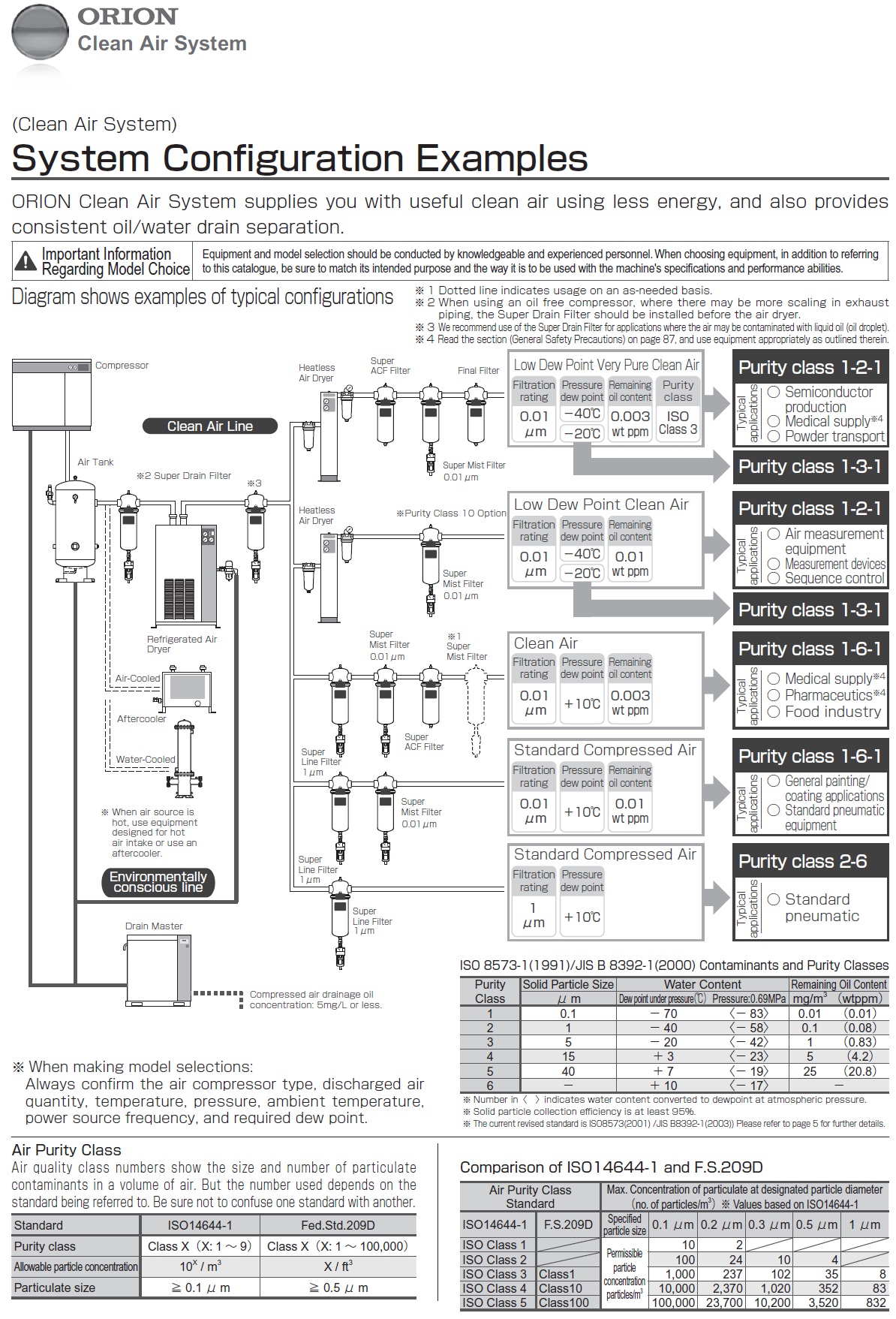

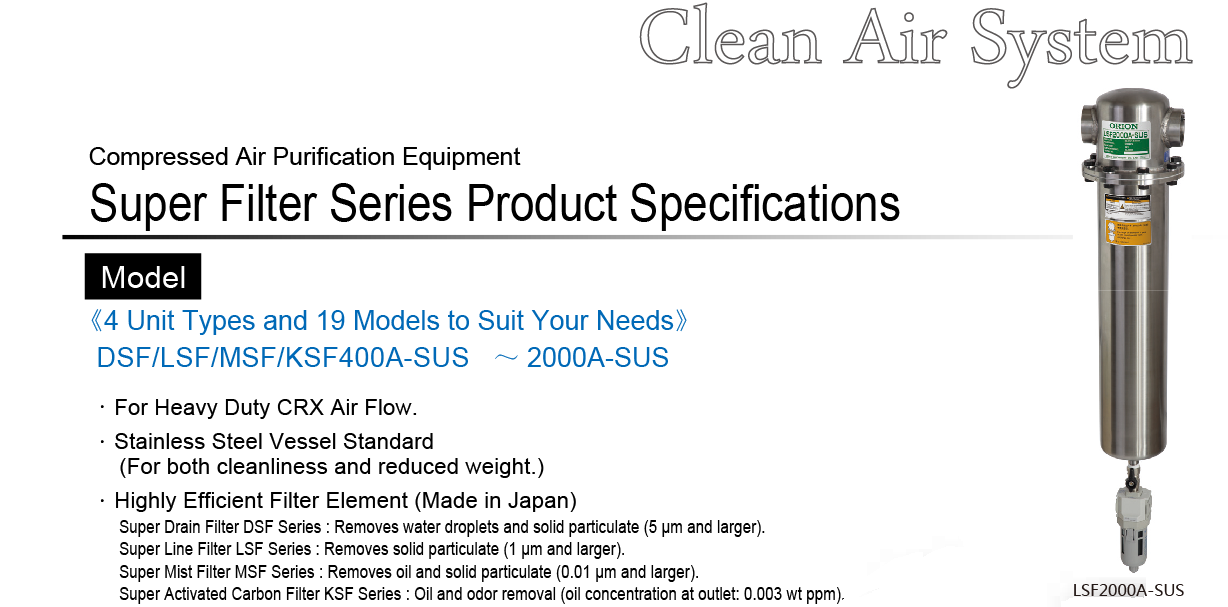

- System Configuration Examples
- Catalog Download
- Manual Download
-

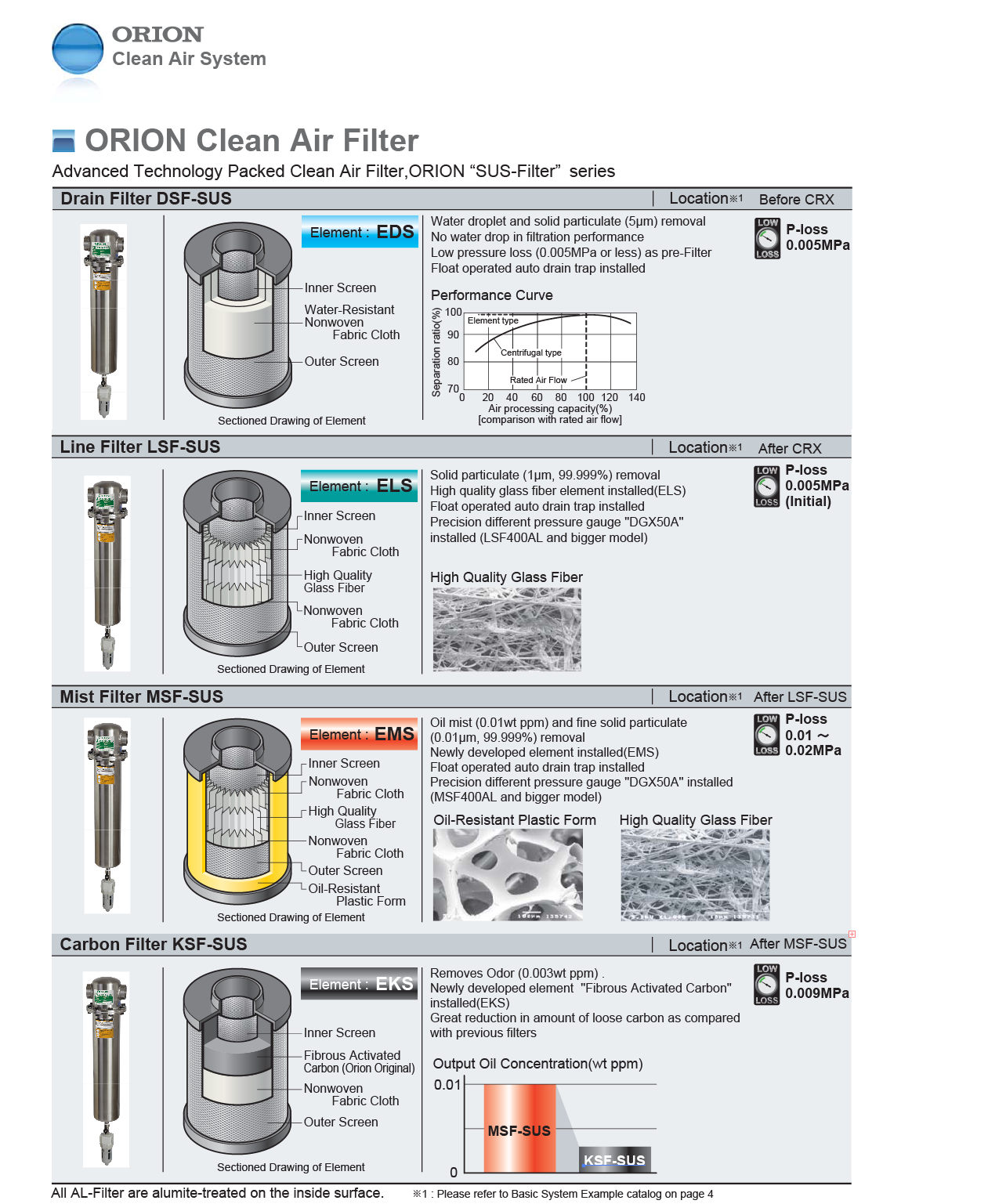

Specifications
※ 1.Processing air capacity is calculated based on compressor intake conditions (atmospheric pressure, 32℃, 75% humidity.)Model DSF 400A-SUS 700A-SUS 1000A-SUS 1500A-SUS — LSF/MSF/KSF 2000A-SUS Air processing capacity at 0.69MPa ? /min 4.2 6.8 10.9 14.0 20.0 at 0.75MPa ? /min 4.5 7.3 11.7 15.0 21.5 Body and housing Stainless steel Operating ranges Operating ranges MPa 0.05 ? 0.98 Inlet air temperature ℃ 5? 60 Ambient temperature ℃ 2? 60 Performance
specificationsFiltration DSF：5μm (Water droplet separation efficiency: 99%) LSF：1μm (Filtration efficiency: 99.999%)
DSF：5μm (Water droplet separation efficiency: 99%) LSF：1μm (Filtration efficiency: 99.999%)
MSF：0.01μm(Filtration efficiency: 99.999%) KSF：Adsorption by activated carbon fiberOutput oil concentration wt ppm MSF:0.01 KSF:0.003 Pressure Loss MPa DSF: Initial 0.005、LSF: Initial 0.005、MSF: Initial 0.01?Usual 0.02、KSF: Initial 0.009 When to replace filter element One year or pressure loss 0.02 MPa for DSF, 0.035 MPa for LSF/MSF, whichever comes first. Main dimensions Air connection Rc1 Rc1? Rc2 Size（Width） mm 174 Size（Length） mm 532（KSF:370） 599（KSF:429） 709（KSF:539） 789（KSF:619） 946（KSF:776） Mass kg 4.3 4.9 5.2 5.6 6.5 Element Model : EDS/ELS/EMS/EKS 400 700 1000 1300 2000 Q'ty 1 Auto drain trap DSF/LSF/MSF ※4 Model FD2 Filter element change timer MSF ：Standard DSF/LSF/KSF ：Option ※ 2.Processed air conditions: Inlet air pressure: 0.69MPa, inlet air temp:32℃, inlet dew point at atmospheric pressure: －17℃ (PDP: 10℃ ).
※ 3.Replace filter when there is pressure loss or after the recommended period use, whichever comes first.
※ 4. Auto drain trap: float operated type.
-
-
-
