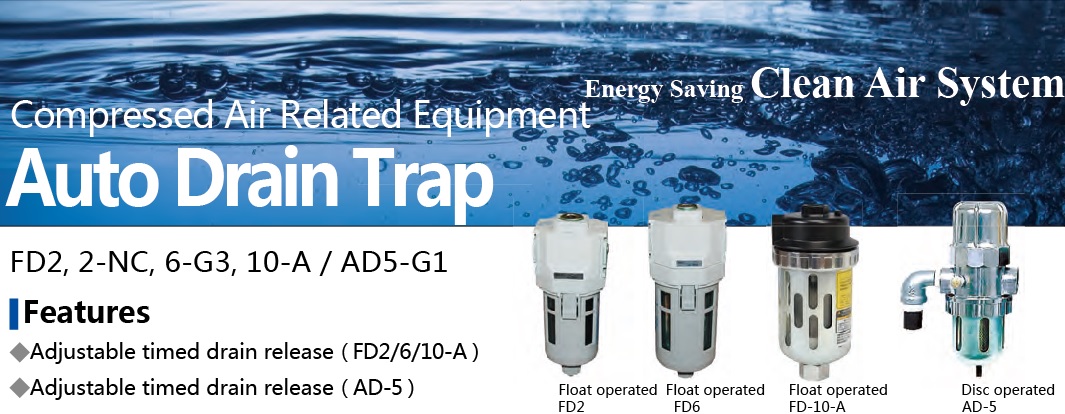

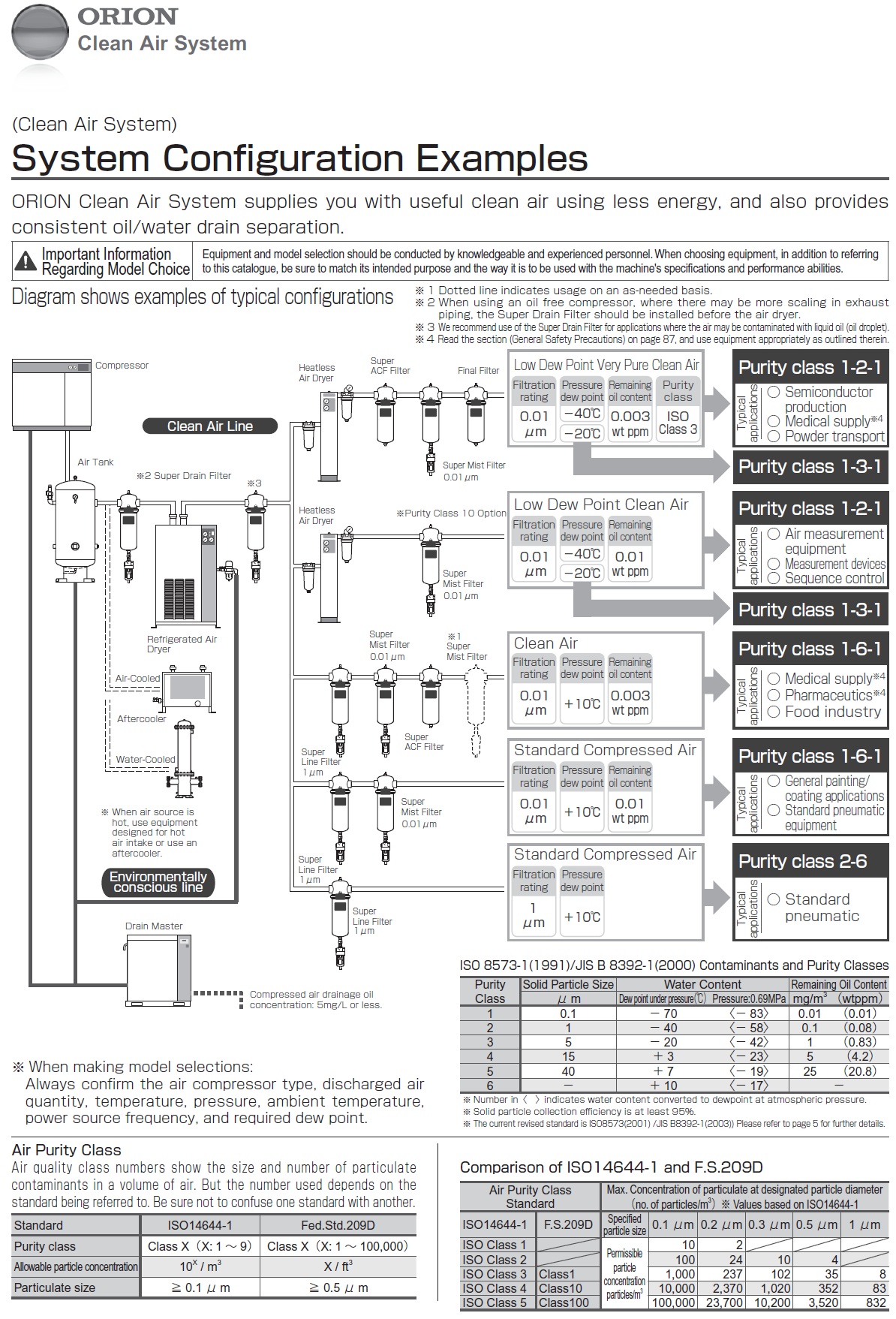

- System Configuration Examples
- Catalog Download
- Manual Download
-
Specifications
※1.Drain conditions: Air pressure (gauge pressure): 0.69MPa。※2.Please use the hose nipple is φ5.7～φ6.0（OD φ8）。※Drain inlet (FD2，F(xiàn)D6，F(xiàn)D-10-A) ports are available on the top and side of the unit. Screw the included cap onto the unused connection port。※Please consult your Orion dealer for further details。Model Float operated Disc operated FD2-G3 FD6-G3 FD-10-A AD-5-G1 Performance Maximum drain flow capacity※1 Drain (water only) ? /回 10 30 80 450L/h Air only L/ 回 — about 0.3 Operable pressure range MPa 0.1～1.0 0.1～1.0 0.20～0.98 0.29～0.98 Operable temperature range ℃ 2? 60 Processed fluid Compressed air drain Drain release method Float operated Disc operated Connections Inlet Rc1/2 Drain outlet hose nipple ※2 Rc3/8 Rc1/2 Mass kg 0.3 0.45 1.0 1.7 Outside dimensions mm □ 63× length 178 □ 80× length 201 φ96× length 193 φ86× length 198 -
-
-
