Selection range of chiller
| Type | CKS series | CKL series |
|---|---|---|
| Cold water setting temp（℃） | 5~30 | 10~30 |
| Ambient temp（℃） | 5~40 | 5~43 |
| Control accuracy（℃） | ±0.1℃ | ±1.0℃ |
| Cold water flow（L/min） | 10~55 | 18~320 |
| Cooling capacity（kW） | 2.2~8.7 | 12.0~57.0 |
| Cold water use pressure（MPa） | 0.08~0.5 | 0.1~0.5 |

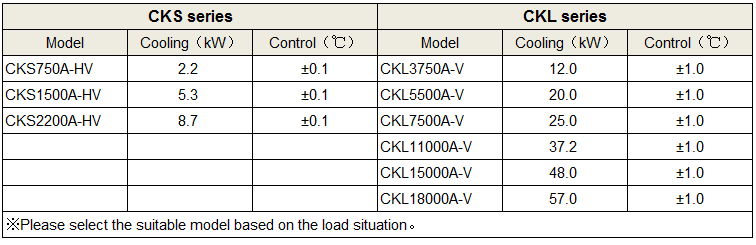

1.Selecting the suitable model from chiller cooling capacity (Refer Model Selection Comparison Table.)
2.Selecting the suitable model from the usage conditions
